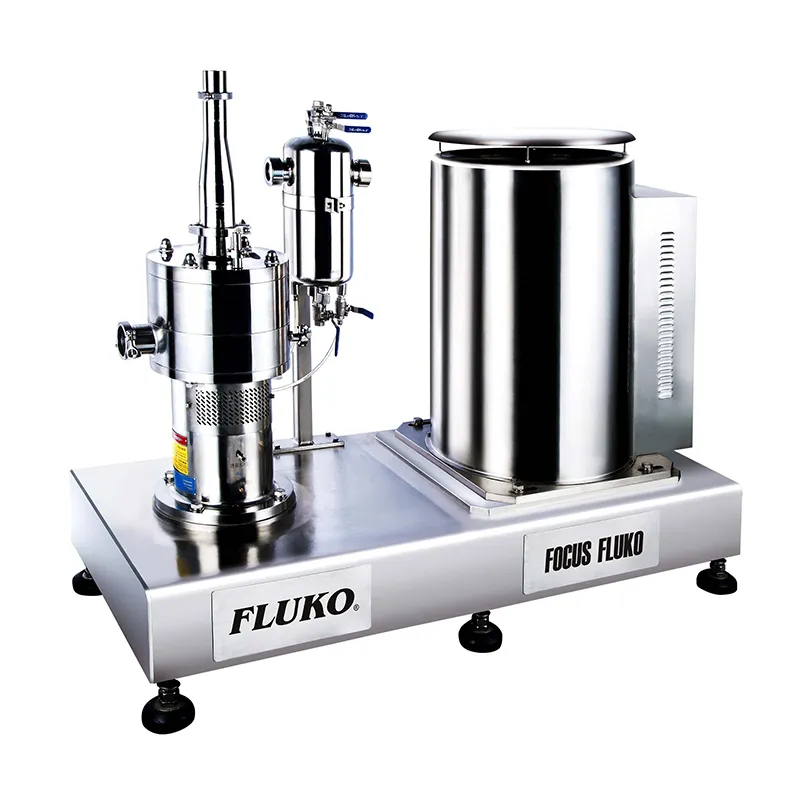

FDHS2/FDHS3 Inline High Shear Dispersing Emulsifier

High shear emulsifier with vertical structure for emulsion and suspension production

FDHS2/FDHS3

Inline High Shear Dispersing Emulsifier

High shear emulsifier with vertical structure for emulsion and suspension production

This inline high shear dispersing emulsifier uses a vertical structure for intake of materials and discharge emulsified mixtures, achieving a maximum linear velocity of 40 m/s. The internal design features precise geometric structures to ensure thorough shearing without dead zones. The working chamber can be configured with single-stage or multi-stage options, producing finer droplets, narrower particle size distribution, and improved emulsion stability.

Key Specifications

Motor power (W) 5.5
Power supply 380V, 50HZ
Max. flow rate (H₂O) (L/min) 10
Speed range (rpm) 0-15000

Request a Quote

Specifications

Model	FDHS2/60	FDHS3/40	FDHS3/60
Motor power (W)	5.5	2.2	5.5
Power supply	380V, 50HZ	380V, 50HZ	380V, 50HZ
Max. flow rate (H₂O) (L/min)	10	5	10
Speed range (rpm)	0-13500	0-15000	0-13500
Max. operating temperature (℃)	120	120	120
Speed display	Digital display	Digital display	Digital display
Speed control	Frequency control	Frequency control	Frequency control
Inverter	Standard	Standard	Standard
Medium-contact material	SS316L	SS316L	SS316L
Standard working chamber	Stainless steel (with jacket)	Stainless steel (with jacket)	Stainless steel (with jacket)
Standard agitator	4M/6 F	2G/4M/6 F	2G/4M/6 F
Seal type	Double mechanical seal	Double mechanical seal	Double mechanical seal
Inlet/outlet size	1”, 1” (clamp connection)	1”, 3/4” (clamp connection)	1”, 1” (clamp connection)
Operation mode	Inline processing	Inline processing	Inline processing
Dimensions (mm)	1000×480×1250	570×260×1120	1000×480×1250
Protection grade of motor housing	IP55	IP55	IP55

Applications

This inline high shear dispersing emulsifier is ideal for hygienic-grade production of emulsions, microemulsions, suspensions, and ultra-fine suspensions.

Features

Materials are processed inline as they pass through the working chamber, with the option for single-pass or multi-pass circulation for enhanced processing results.
