FLUKO ® JetmixersDispersing Mixers

Dispersing Mixers
Dispersing Mixers
Dispersing Mixers

FLUKO ® JetmixersDispersing Mixers

As one of our flagship products, Jetmixers series dispersing mixers offer powerful macro and micro mixing capabilities. The dispersing mixer provides vertical directional flow output, ensuring comprehensive mixing across all liquid layers, promoting full exchange and contact between materials.

Jetmixers series dispersing mixers are ideal for processes such as sugar dissolution, powder dissolution, gel formation, suspensions, reaction acceleration, and the dispersion and mixing of nanomaterials and lightweight powders.

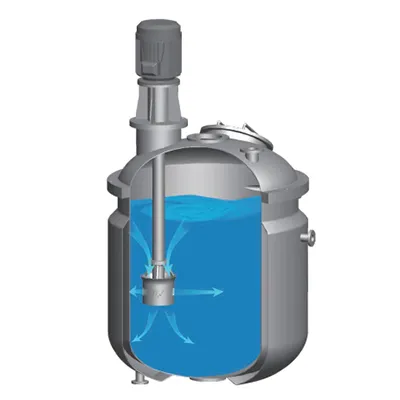

    1. Batch Dispersing Mixer
    2. Batch Dispersing Mixer This batch dispersing mixer similarly combines a high-speed rotor with a flow-guiding chamber, producing strong vertical circulation flow and shear turbulence for effective micro-mixing. However, this series batch dispersing mixer is specifically designed for use in vacuum or pressure environments. Find Out More
    3. Rated power (kW): 1.5-55
      Max. speed (rpm): 1500-3000
      Max. processing capacity (L), H₂O: 70-10000

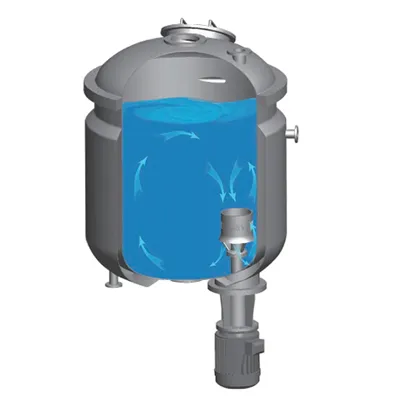

    1. Bottom Entry Dispersing Mixer

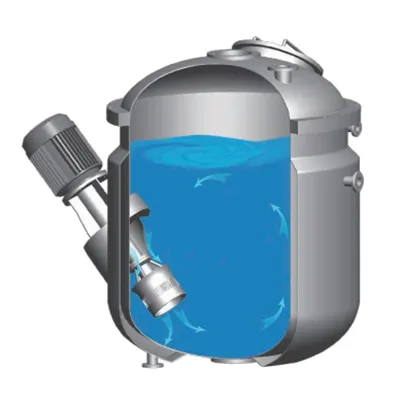

    2. Bottom Entry Dispersing Mixer These bottom and side-mounted dispersing mixers are typically used in large tanks, effectively controlling energy consumption within reasonable limits. This installation method is highly versatile, functioning efficiently regardless of container shape, making it ideal for larger scale mixing applications. Find Out More
    3. Rated power (kW): 1.5-55
      Max. speed (rpm): 1500-3000
      Max. processing capacity (L), H₂O: 70-10000
Frequently Asked Questions

The rotor in Jetmixers is positioned within a stationary stator, which prevents the surrounding liquid from rotating and directs the flow toward the bottom of the container. This creates a consistent vertical circulation, allowing for effective macro mixing through laminar flow across the entire container and micro mixing through high turbulence at the mixing head.

Jetmixers series dispersing mixers are commonly used in standard tanks or maturation tanks where products need to remain homogeneous and prevent separation, such as sedimentation or flotation. In these cases, intense mixing or high turbulence is not required however, ensuring uniform distribution and maintaining gentle circulation are critical factors.
Reliable Source for Mixing and Dispersing Solutions

Established in 1999, FLUKO is a specialized manufacturer dedicated to developing advanced mixing and homogenizing technologies and equipment. We focus on providing high-shear mixers, micro-structured mixing systems, and innovative impeller stirring solutions.

Find Out More
Reliable Source for Mixing and Dispersing Solutions
  • 25 years of experience
  • 10,000 successful projects
  • 80 patents and over 10 technical standards
  • TÜV Rheinland certified
