Batch High Shear Mixer

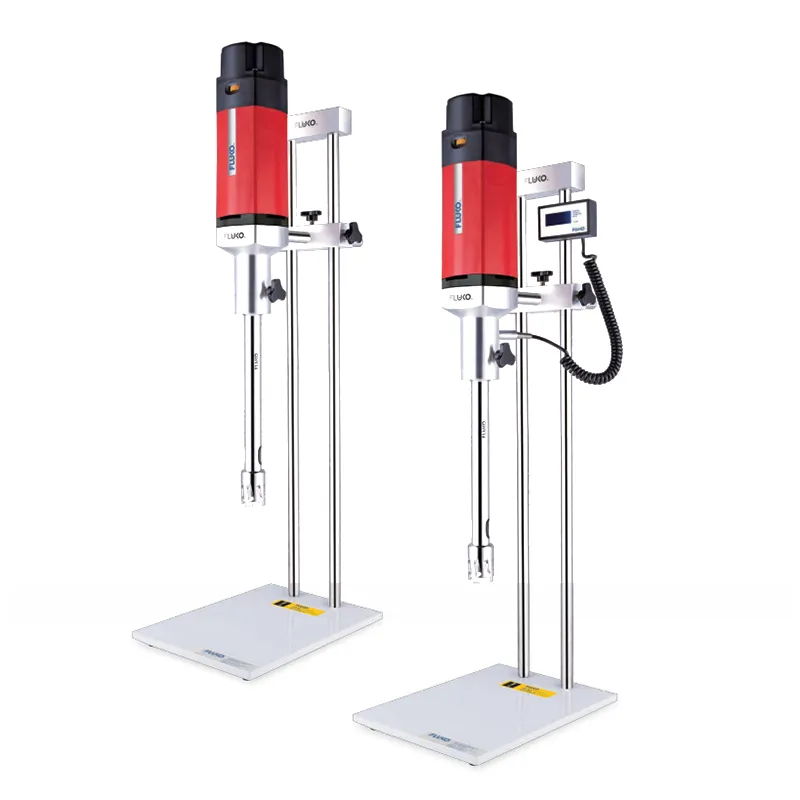

FA40/FA40D Batch High Shear Mixer

High speed high shear mixer for dispersing, homogenizing, emulsifying and mixing

FA40/FA40D

High speed high shear mixer for dispersing, homogenizing, emulsifying and mixing

This high shear mixer is equipped with a high-power, high-speed motor capable of reaching a no-load speed of up to 23,500 RPM, with a maximum batch processing capacity of 15,000 mL, making it suitable for larger experimental volumes. It is ideal for high-precision tasks such as dispersion, homogenization, emulsification, mixing, and tissue disruption, delivering fast and effective performance.

Key Specifications

Motor power (W) 1800
Power supply 220V, 50/60Hz
Mixing capacity (H₂O) (ml) 500-15000
Max. viscosity (cP) 8000

Request a Quote

Specifications

Model	FA40	FA40D
Motor power (W)	1800
Power supply	220V, 50/60Hz
Mixing capacity (H₂O) (ml)	500-15000
Max. viscosity (cP)	8000
Speed range (no-load) (rpm)	2500-23500
Speed display	Scale	Digital display
Speed control	Stepless
Medium-contact material	SS316L

Stirring shaft material	PTFE
Standard dispersing tool	40M
Allowable ambient temperature (℃)	5 to 40
Allowable relative humidity (%)	80
Work frame/stand base	Standard
Dimensions (mm)	250×375×860
Weight (kg)	≤12
Packaging	Wooden case

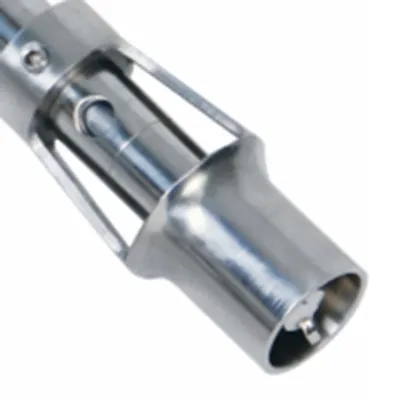

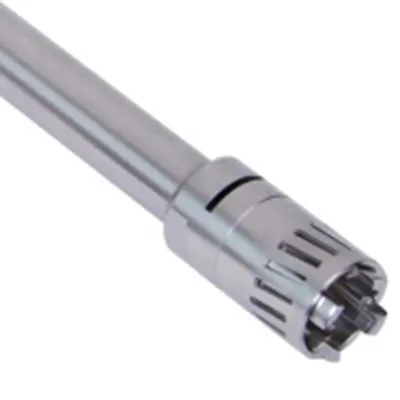

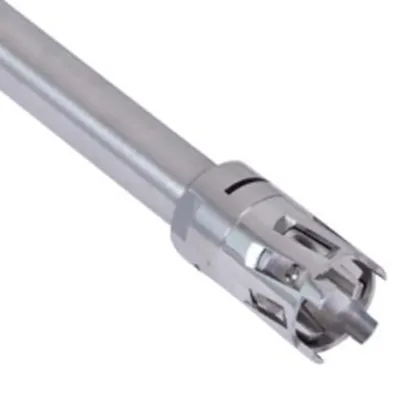

Optional Dispersing Tools

Model 40M 40DM
Model 40G 40DG
Model 40J

Features

Its higher linear velocity and processing volume results in efficient and effective operation. It has a very user-friendly operation system designed for ease of use.
